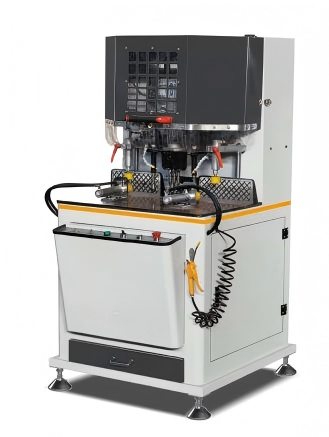

Vertical Lock-Hole Machine
SHLJ-100
Power supply: 380V/50Hz
Motor power: 2.2 kW + 1.5 kW
Air pressure: 0.6–0.8 MPa
Table size: 690 × 340 mm
Slotted saw blade: ⌀200 × ⌀32 × 8 mm (2 pcs)
Bit standard: Side 12, Center 14
Overall dimension: 800 × 695 × 1000 mm
Weight: Approx. 200 kg
Suitable for door and window handle and lock
mounting hole and groove forming.
Product Details
Related Cases
Related Post
Drilling bag and milling cutter can be customized
according to sample according to different handles
and locks.
Convenient operation, stable performance and
high machining eficiency
