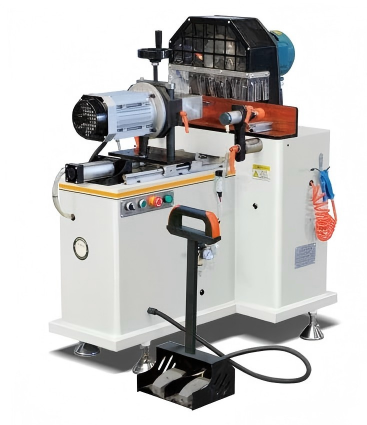

Horizontal Lock-Hole Machine
SHWJ-100
Power supply: 380V/50Hz
Motor power: 1.5 kW + 1.5 kW
Air pressure: 0.6–0.8 MPa
Table size: 690 × 340 mm
Slotted saw blade: ⌀200 × ⌀32 × 8 mm (2 pcs)
Bit standard: Side 12, Center 14
Overall dimension: 800 × 695 × 1000 mm
Weight: Approx. 200 kg
Used for all kinds of aluminum alloy transmission
box, hand lock, milling and one-time forming.
Product Details
Related Cases
Related Post
Adopt double shaft combined cutting, special
equipment for hand lock of transmission box.
Automatic spray cooling tool, improve tool life.
A clamping can be completed profiles perpendicular
to each other in the two sides of the hole.
The upper slot is formed by a single cutting with a
professional cutter, and the length of the slot can
be adjusted at will.
