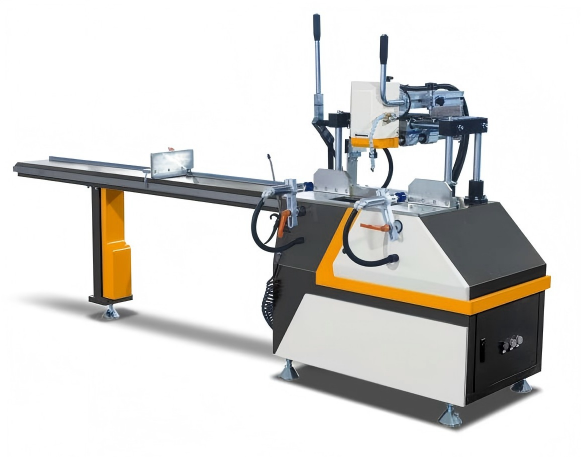

High-speed Spindle Copy-routing Drilling Machine
LJXG-300*200
Power supply: 380V/50Hz
Motor power/speed: 2.2 kW / 18000 r/min
Working air pressure: 0.6–0.8 MPa
Air consumption: 2 L/min
Copy-routing range: 300 × 220 mm
Milling cutter diameter: ⌀6 – ⌀12 mm
Profile section: 300 × 100 mm
Overall dimension: 3000 × 800 × 1600 mm
Weight: Approx. 350 kg
It is suitable for copying all kinds of holes, tenons
and grooves of aluminum profiles
Product Details
Related Cases
Related Post
Precision machining of linear guide rail makes the
milling cutter move stably and flexibly and operate
easily.
The advanced milling cutter chuck is selected to
match with the imported air-cooled integrated
electric spindle, which makes the milling cutter
clamping simple and convenient.
Excellent air-oil filter atomization cooling system
makes milling effect better.
