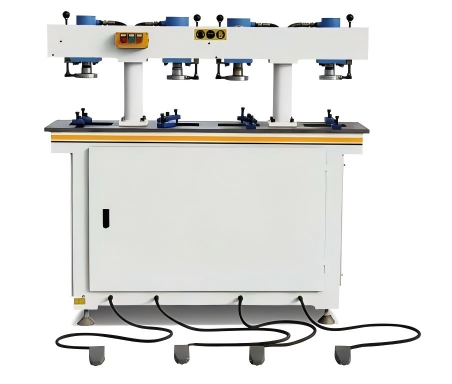

Heavy Four-station Hydraulic Press Machine
LYZ4-90
Power supply: 380V/50Hz
Input power: 4.0 kW
Rated oil pump pressure: 20 MPa
Nominal pressure: 50 KN
Closing height: 185 mm
Stamping stroke: 30 mm
Fuel tank capacity: 80 L
Overall dimension: 1100 × 1200 × 1700 mm
Weight: Approx. 950 kg
It is suitable for blanking of single-mode and
four-station combined dies for various series of
aluminum door and window profiles.
Product Details
Related Cases
Related Post
The hydraulic system provides power, and the
riveting force is large, the speed is fast and the work
is stable.
The machine body can accommodate 4 sets of
different dies at the same time.
It is used for punching and cutting the handle
holes, glue injection holes, drainage holes, included
angles, pins and connecting rods of doors and
windows.
