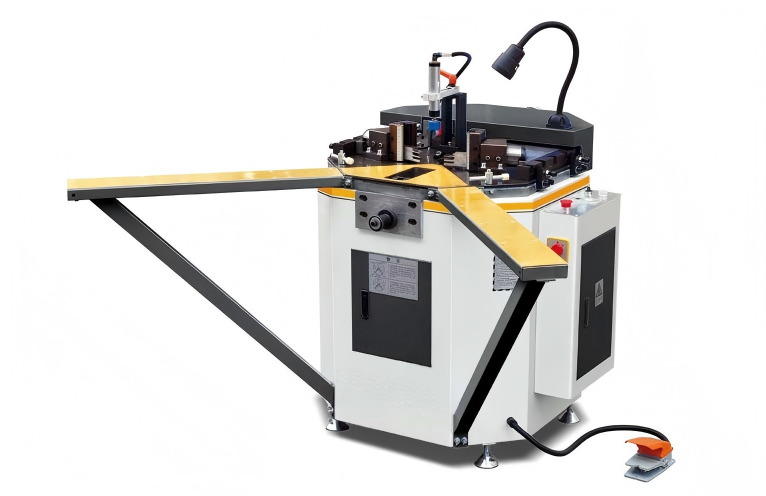

Digital Knife Adjustment Corner Combining Machine
LMB-SZ-120B
Support Non-Standard Customization
Power supply: 380V/50Hz
Total motor power: 2.2 kW
Motor speed: 1400 r/min
Operating pressure: 0.6–0.8 MPa
Air consumption: 2 L/min
Rated pressure: 16 MPa
Extrusion pressure: 48 KN
Motion stroke of angle cylinder: 85 mm
Adjustment range of positioning block: 54 mm
Height of machined profile: 90 mm
Overall dimension: 1850 × 1180 × 1210 mm
Weight: Approx. 450 kg
It is suitable for angle-code punching and riveting connection of
aluminum doors and windows. The power is controlled by hydraulic
system, and the work is stable and reliable
Product Details
Related Cases
Related Post
Automatic lifting internal positioning makes the workpiece clamping
more convenient.
Special high-speed hydraulic system can provide faster angular
speed and improve working efficiency.
Single-knife and multi-point corner cutters can be configured, which
makes the angle of insulation broken bridge aluminum doors and
windows more reliable.
LED work lights are set on the countertop, which makes the
operation more accurate, practical and convenient, and reduces the
rejection rate.
Major electrical components adopt well-known brands to ensure
the reliability of the electrical system.
