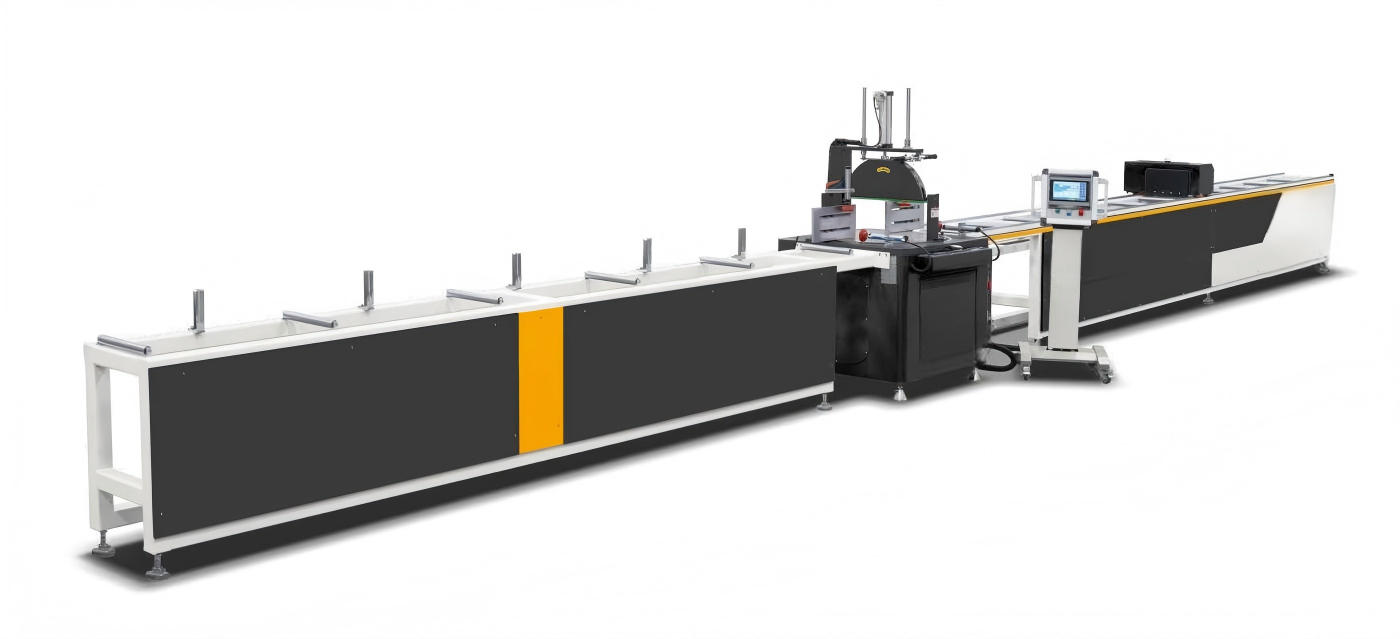

CNC Positioning Single-head Arbitrary Angle Cutting Machine
LJZA-CNC-500/550/600/650
Support Non-Standard Customization
■ Input power supply：380V/50Hz
■ Total power ：5.0kW
■ Motor power：4.0kW spindle motor
■ Motor rotary speed ：3000r/min
■ Working air pressure：0.6~0.8MPa
■ Air consumption ：20L/min
■ Cutting width ：Max.420mm 90°
■ Cutting height ：Max. 230mm
■ Cutting angle：Any adjustment between 22.5° and 157.5 °
■ Cutterfeeding speed ：0~3m/min
■ Saw blade speciication：Φ650*Φ30*4.0mm Z=144
■ Overall dimensions ：12000*1200*1950mm
■ Weight ：about 1100kg
Repetitive Positioning Accuracy: ≤0.1mm
Cutting Angle Error: ±3′
Roughness of Cutting Surface: Ra12.8μm
It is suitable for cutting various types of industrial aluminum profiles at any angle, and the sawing angle can be adjusted at will between 22.5° and 157.5 ° .
Numerical control cut-to-length automatic feeding, which can input the cutting length and size at one time to realize automatic cutting with high precision and simple operation.
Product Details
Related Cases
Related Post
Suitable for cutting 0-420mm section, with wide application range.
■ Carbide saw blade has high machining accuracy and high durability.
■ The installation of numerical control length table has more accurate positioning and high processing eiciency.
■ Multiple proile can be cut at that sametime.
