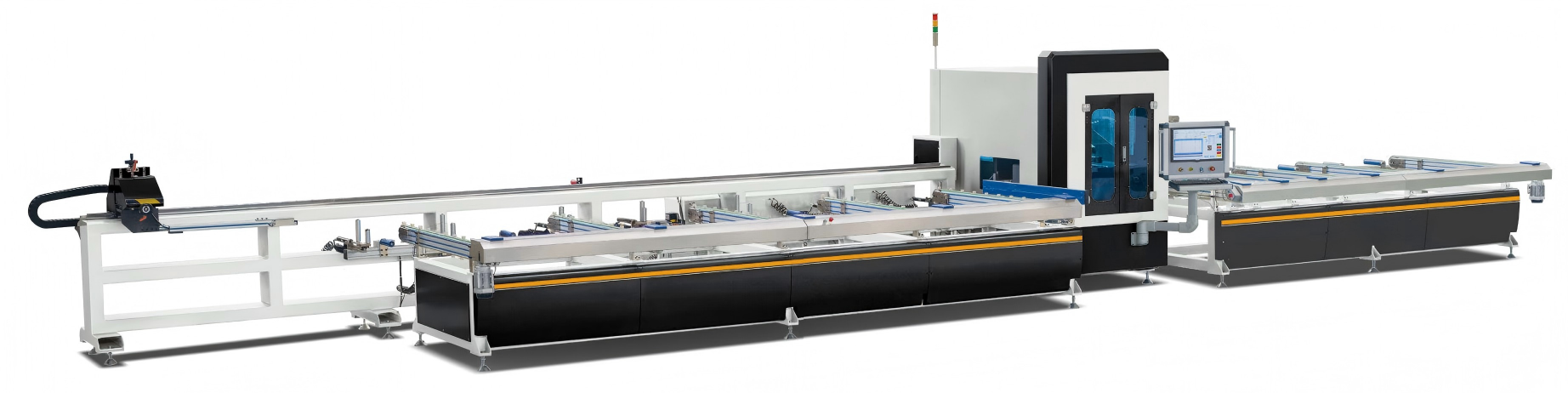

CNC Cutting Center for Aluminum Profile

LJZDB-CNC-6500 Length can be customized Power supply: 380V / 50Hz Motor speed: 2800 r/min Total power of equipment: 11 kW Working pressure: 0.6–0.8 MPa Air supply: 50 L/min Cutting length: 300–6500 mm Cutting width: 150 mm Cutting height: 150 mm Cutting angle: 45°, -45°, 90° Feeding speed: Infinitely variable 0–3 m/min Saw blade specification: ⌀500 × 4.4 × ⌀30, Z = 120 teeth (Can be equipped with 550 mm blade optionally) Overall dimension: 13500 × 4500 × 2300 mm Weight: Approx. 4000 kgCutting length accuracy：±0.1mm * Flatness of cutting profile：≤0.10mm * Cutting angle error：±5′ * Roughness of cutting profile：Ra 12.5μm Cutting length accuracy：± 0.1mm ＊Flatness of cutting profile：≤0.10mm ＊Cutting angle error：± 5′ ＊Roughness of cutting profile：Ra 12.5μm

Uses for cutting 45° and 90° of aluminum PVC proile of window,door,curtain wall,solar and other industrial aluminum with functions of automatic cycle feeding, cutting and automatic output ofinished products. ■ Various door and window profiles can be cut without adding profile proiling. ■ Automatic feeding worktable can continuously and automatically clamp profiles for cutting processing, and imported high-precision gear rack is used for the motion of manipulator to ensure the feeding accuracy.

■ Various door and window profiles can be cut without adding profile proiling.

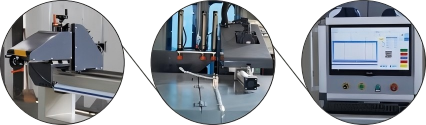

■ Automatic feeding worktable can continuously and automatically clamp profiles for cutting processing, and imported high-precision gear rack is used for the motion of manipulator to ensure the feeding accuracy.

■ The moving part adopts high-precision linear guide rail pair, which runs stably and ensures the machining accuracy.

■ Imported high-quality control system ensures stable and reliable operation of equipment.

■ Imported motor is directly connected to saw blade, which has stable cutting and high machining precision.

■ Equipped with multi-station capacity follow-up tool magazine, fully enclosed shell design and multiple safety protection structures to ensure the safety of operators.
