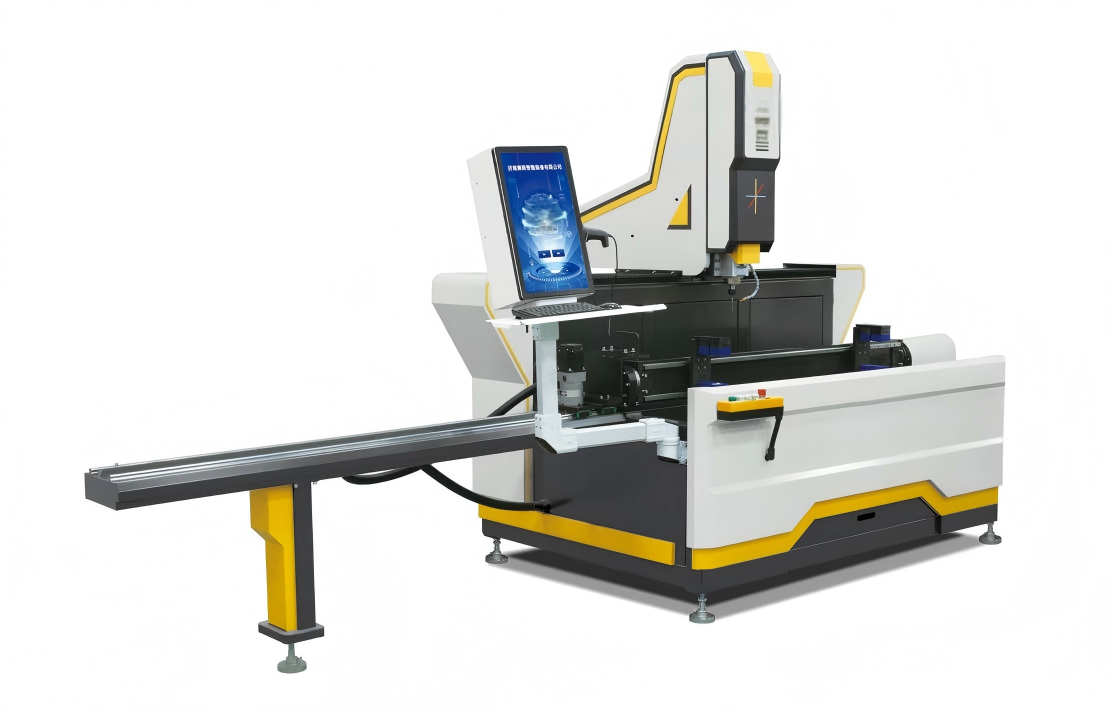

4-axis CNC Drilling and Milling Processing Center

Adopting CNC system, equipped with professional CAD- CAM programming software, the G code can be automatically converted and processed, with simple operation, high effciency and low labor intensity.

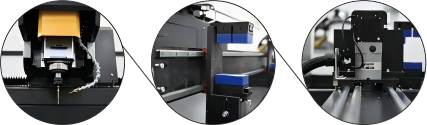

■ The motion pairs all adopt imported guide rail s and sliders, the X axis adopts high-precision helical gears and helical racks, and the Y axis and Z axis adopt high-precision ball screws for transmission. Smooth transmission, efectively improving the accuracy of the whole machine.

■ The workbench is turned over by 180°,-90° ~ 0° ~+90°, and the proile can be machined on three sides at one time.

■ When processing deep through holes (special-shaped holes), deep hole processing is realized by turning the workbench, which improves effciency and quality.

■ Manual pump oil supply system is adopted, and the tool adopts system-controlled spray cooling device.

■ The main electrical components, circuit breakers and AC contactors are made of Schneider products from France.

■ The main parts of the machine tool are made of steel structures, all of which have been aged.
