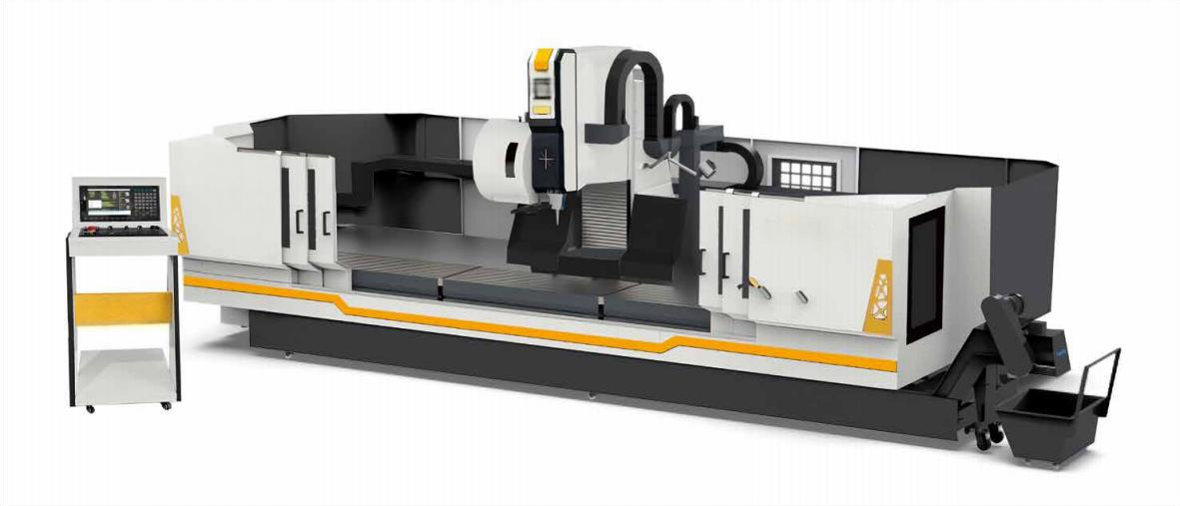

High-speed 3-axis CNC Processing Center
PC-CNC-6500
Support Non-Standard Customization
X-axis stroke：2500~12500mm
Y-axis stroke：550mm
Z-axis stroke：700mm
X-axis running speed：0~60m/min
Y-axis running speed：0~28m/min
Z-axis running speed：0~28m/min
Spindle speed：12000rpm
Taper ofspindle hole：BT40
Spindle power：11/18.5kW
Tool magazineform：Rotarydisctype
Tool magazinecapacity：24
Cooling system：Atomization cooling orwaterjet cutting coolingsystem
Lubrication system：Automatic lubrication
Closest distance between spindle nose endandworkbench：150mm
Worktable:：5T-shaped groovewidth 18mm
Gas consumption：8L/min
Overal dimensions：8600*2900*3100mm (4500 model reference)
Weight：about9000kg
X-axis positioning accuracy：0.03mm
Y/Z-axis positioning accuracy：0.02mm
Repetitive positioning accuracy：0.02mm
Suitable for deep processing of aluminum curtain walls
and industrial aluminum profiles.
Using movable column structure, aluminum alloy, iron,
steel and PVC profiles are drilled, rigidly tapped, milled,
cut off and end machined (equipped with right angle head)
in an orderly and precise manner.
Product Details
Related Cases
Related Post
The machine’s main control parts, moving column structure and
spindle box are made of high-quality nano-cast iron, which has the
advantages of stable operation, accurate processing, high eiciency
and durability.
The tool magazine is equipped with 24 tool positions, which can
change tools quickly according to the requirements of the program,
andautomaticaly changetools bycrossingarms.
The tool is cooled by freezing spray system or water spraying cycle,
which improves the service life and machining accuracy of the
workpiece.
Equipped with chip recovery box, movable closed protective cover
(optional) and three-dimensional programming display, the operation
is simple, safe and convenient
