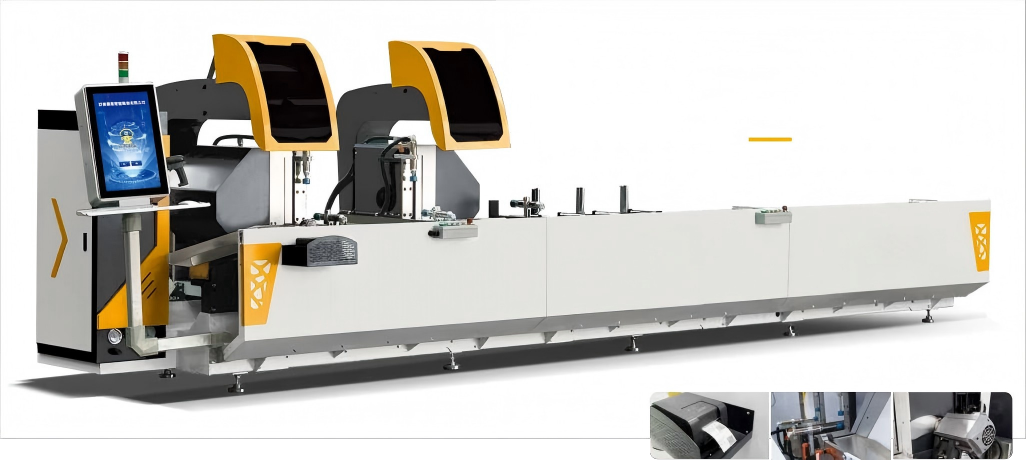

3-axis CNC High-precision Double-head Precision Cutting Saw

SH-CNC-500*5000FOM Support Non-Standard Customization ■ Input power supply ：380V/50Hz ■ Total power ：9.0kW ■ Cutting motor power ：2*3.0kW ■ Motor rotary speed ：3000r/min ■ Servo motor ：2*0.4kW+0.75kW ■ Working air pressure ：0.6~0.8MPa ■ Air consumption ：40L/ min ■ Cutting length ：280~5000mm ■ Short material cutting function ：Min. 200mm ■ Cutting width ：Max. 150mm ■ Max. cutting section ：45。 150*175mm 90。 150*280mm ■ Max. square pipe cutting： 150*200mm ■ Sawing angle ：45。 (swing out) -90。 ■ Cutter feeding speed ：Servo motor speed regulation 0~4m/min Repetitive Positioning Accuracy: ≤0.1mm Verticality of Cutting Profile: ±0.05mm Cutting Angle Error: ±3′ Flatness of Cutting Profile: ≤0.02mm Roughness of Cutting Surface: Ra6.3μm

This model is an intelligent connection model, which supports the docking of ERP/MES management software, realizes the integration of production and marketing management and control, and improves production efficiency. Support a variety of data import methods: Internet, LAN, USB flash drive, manual input, etc. It can be connected with the data of common optimization software in the market: Xinger, Changfeng, Chuangying, etc.

■Brand-new appearance and unique mechanical design structure make the product more stable, easier to cut proiles and smoother.

■ Fool-like operation does not require skilled workers, which solves the diiculty of recruiting workers in factories. Label printing function and error-prooffunction:the proile is not cutwhenthe error is out of range.

■ High precision: the integrated casting table, the integrated spindle directly connected motor and servo motor feed the cylinder body, and the feeding is positioned at a constant speed, which accurately saves the time of empty cutting. The T1 and T2 heads are located on the integrated guide rail, which ensures the latness of the two heads.

■ Environmental protection function: unique chip removal and dust collection design, high dust collection rate, clean site, reduce cleaning frequency and improve work eiciency.

■ Equipped with patented rotary lifting bracket to avoid cutting error caused by middle sag, equipped with follow-up proile bracket.

■ The latest arc cutting technology, sawing profiles is safer, faster and more reliable.
